Australian-made deployment scope
Architecture review, solution configuration, validation planning, documentation, and commercial accountability are handled in Australia.
Built for Data Center AI
Explore xSONiC data center AI switches for low-latency spine-leaf fabrics, 100G/400G networking, and SONiC-aligned infrastructure.
AI cluster networkingspine-leaf data center fabric100G/400G infrastructure refresh
Australian-Made Deployment Scope
Australian-made Data Center AI solutions for global deployment.
xSONiC delivers Australian-made open networking and data center infrastructure solutions using qualified global components, with Australian architecture review, integration planning, validation, documentation, and commercial accountability.Qualified global components
Switching, optics, storage, server, and packet visibility components are selected against port speed, OS, telemetry, power, and deployment requirements.
Procurement validation
The bill of materials is checked against RFP requirements, rollback path, optics compatibility, support model, and export screening before order release.
Global deployment support
xSONiC supports international buyers through Australian project ownership, acceptance evidence, documentation, and post-delivery escalation.
Products 9 catalogue models
Speed 100G / 200G / 400G / 800G filterable tiers
Role ToR / Leaf/Spine / Spine/Core selection roles
Deployment fit
- AI cluster networking
- spine-leaf data center fabric
- 100G/400G infrastructure refresh
Buyer profile
- network architects
- data center operators
- system integrators
Common signals
- 100G
- 1U
- 200G
- 25G
- 2U
- 400G
Compare Models
Shortlist by role, port profile, and operating fit
| Model | Ports | Performance | Operations | Best fit | Detail |
|---|---|---|---|---|---|
| XS-DC-32X100-LS-G1 Leaf/Spine | 32x 100G QSFP28 / 2x 10G SFP+ management or auxiliary ports | 3.2Tbps / 6,300Mpps | Enterprise SONiC / xSONiC OS profile | 100G leaf/spine fabrics for private cloud and enterprise data centers | View |
| XS-DC-32X100-LS-G2 Leaf/Spine | 32x 100G QSFP28 / 2x 10G SFP+ management or auxiliary ports | 3.2Tbps / 2,800Mpps | Enterprise SONiC / xSONiC OS profile | 100G leaf/spine fabric for AI, HPC, and private cloud workloads | View |
| XS-DC-32X400-ORV3-G1 Spine | 32x 400G QSFP-DD | 12.8Tbps / 19,040Mpps | Enterprise SONiC / xSONiC OS profile | OCP ORv3 open rack data center fabrics | View |
| XS-DC-32X400-SP-G1 Spine | 32x 400G QSFP-DD / 2x 10G SFP+ management or auxiliary ports | 12.8Tbps / 19,040Mpps | Enterprise SONiC / xSONiC OS profile | 400G spine layer for 100G or 200G leaf fabrics | View |
| XS-DC-32X400-SP-G2 Spine | 32x 400G QSFP-DD / 2x 10G SFP+ management or auxiliary ports | 12.8Tbps / 5,600Mpps | Enterprise SONiC / xSONiC OS profile | 400G spine or core layer for high-capacity data center fabrics | View |
| XS-DC-48X25-8X100-TOR-G2 ToR | 48x 25G SFP28 / 8x 100G QSFP28 uplinks | 2.0Tbps / 2,600Mpps | Enterprise SONiC / xSONiC OS profile | Top-of-rack leaf switching for 25G server access racks | View |
| XS-DC-64X100-LS-G1 Leaf/Spine | 64x 100G QSFP28 / 2x 10G SFP+ management or auxiliary ports | 6.4Tbps / 9,520Mpps | Enterprise SONiC / xSONiC OS profile | Dense 100G leaf/spine data center fabrics | View |
| XS-DC-64X200-LS-G1 Storage Fabric | 64x 200G QSFP56 / 2x 10G SFP+ management or auxiliary ports | 12.8Tbps / 19,040Mpps | Enterprise SONiC / xSONiC OS profile | 200G leaf/spine fabrics for data-intensive compute and storage | View |
| XS-DC-64X800-AI-G1 AI Fabric | 64x 800G OSFP | 51.2Tbps / 42,000Mpps | Enterprise SONiC / xSONiC OS profile | AI and GPU cluster fabric backbones | View |
Catalogue
Data Center AI product cards
XS-DC-32X100-LS-G1
Data Center AI32-port 100G leaf/spine switch for compact data center fabrics, cloud routing, and high-throughput server aggregation.
- Ports
- 32x 100G QSFP28 / 2x 10G SFP+ management or auxiliary ports
- Performance
- 3.2Tbps / 6,300Mpps
- Role
- Leaf/Spine
XS-DC-32X100-LS-G2
Data Center AI32-port 100G leaf/spine switch for VXLAN fabrics, RoCE-ready workloads, and tenant-scale routing.
- Ports
- 32x 100G QSFP28 / 2x 10G SFP+ management or auxiliary ports
- Performance
- 3.2Tbps / 2,800Mpps
- Role
- Leaf/Spine
XS-DC-32X400-ORV3-G1
Data Center AI32-port 400G OCP ORv3 data center switch for open rack deployments, high-capacity fabrics, and SONiC operations.
- Ports
- 32x 400G QSFP-DD
- Performance
- 12.8Tbps / 19,040Mpps
- Role
- Spine
XS-DC-32X400-SP-G1
Data Center AI32-port 400G spine/core switch for high-capacity data center aggregation and next-generation leaf/spine fabrics.
- Ports
- 32x 400G QSFP-DD / 2x 10G SFP+ management or auxiliary ports
- Performance
- 12.8Tbps / 19,040Mpps
- Role
- Spine
XS-DC-32X400-SP-G2
Data Center AI32-port 400G spine/core switch for high-capacity data center fabrics and AI-ready backbones.
- Ports
- 32x 400G QSFP-DD / 2x 10G SFP+ management or auxiliary ports
- Performance
- 12.8Tbps / 5,600Mpps
- Role
- Spine
XS-DC-48X25-8X100-TOR-G2
Data Center AI48-port 25G top-of-rack switch with 8x100G uplinks for cloud-scale data center leaf deployments.
- Ports
- 48x 25G SFP28 / 8x 100G QSFP28 uplinks
- Performance
- 2.0Tbps / 2,600Mpps
- Role
- ToR
XS-DC-64X100-LS-G1
Data Center AI64-port 100G leaf/spine switch for dense data center fabrics and larger 100G aggregation domains.
- Ports
- 64x 100G QSFP28 / 2x 10G SFP+ management or auxiliary ports
- Performance
- 6.4Tbps / 9,520Mpps
- Role
- Leaf/Spine
XS-DC-64X200-LS-G1
Data Center AI64-port 200G leaf/spine switch for high-bandwidth storage, compute, and scale-out data center fabrics.
- Ports
- 64x 200G QSFP56 / 2x 10G SFP+ management or auxiliary ports
- Performance
- 12.8Tbps / 19,040Mpps
- Role
- Storage Fabric
XS-DC-64X800-AI-G1
Data Center AI64-port 800G AI fabric switch for large-scale GPU clusters, HPC backbones, and ultra-high-throughput data center networks.
- Ports
- 64x 800G OSFP
- Performance
- 51.2Tbps / 42,000Mpps
- Role
- AI Fabric

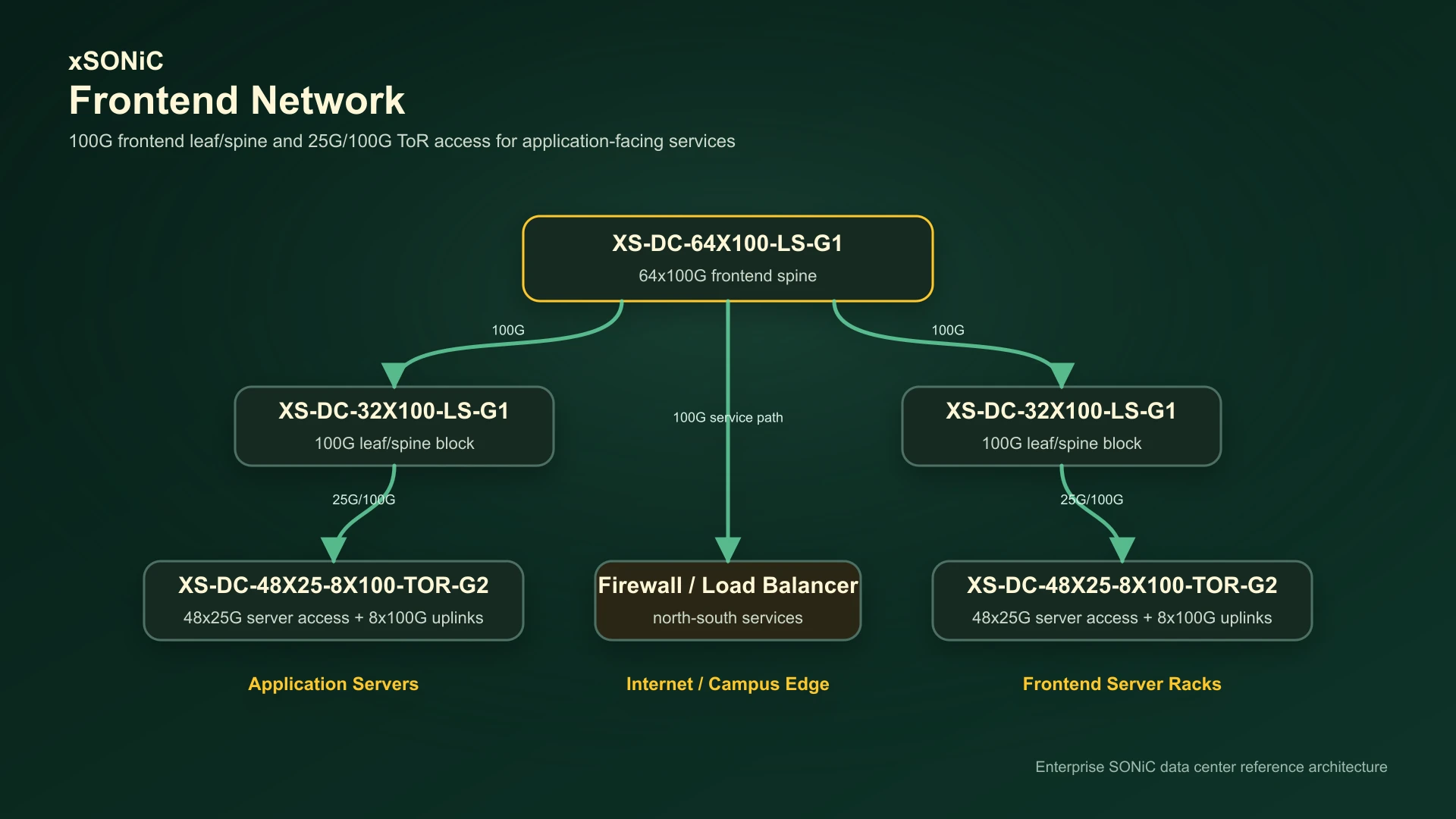

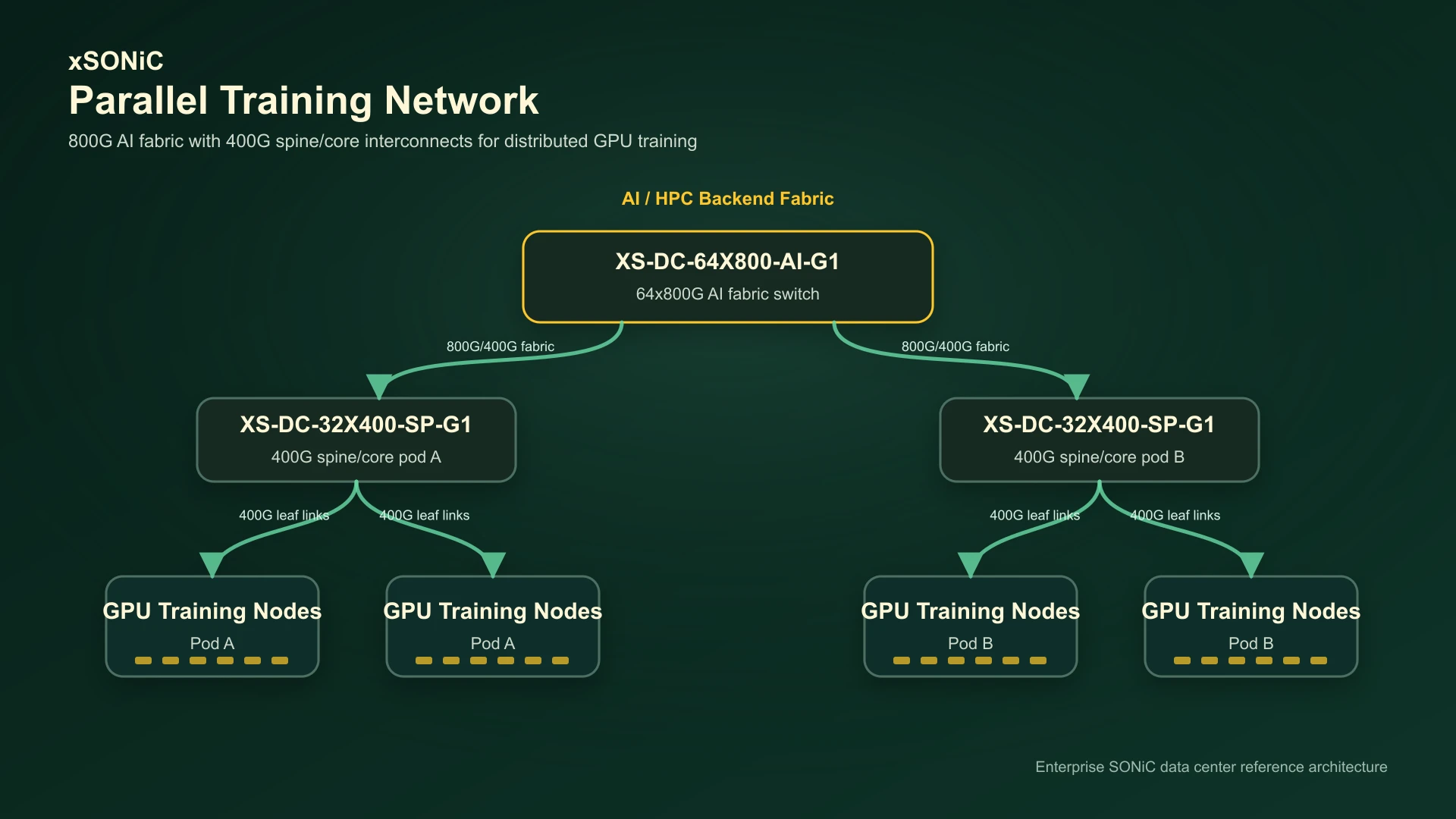

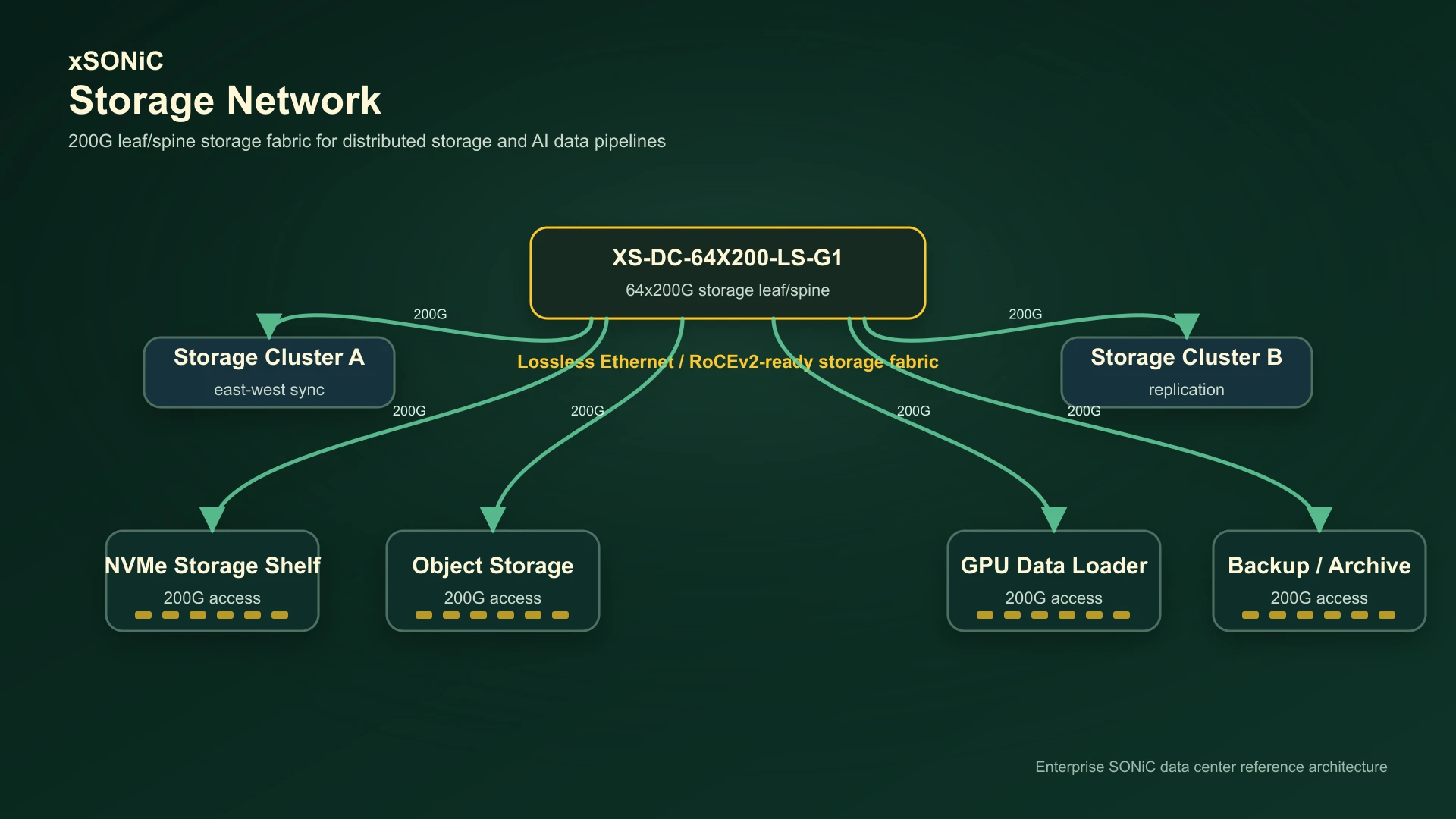

Reference Architecture
Data Center AI topology patterns
