XS-DC-64X100-LS-G1

64x100G QSFP28, high-density 100G fabric switching, and Enterprise SONiC operations in one platform.

Back to Data Center AI

64-port 100G leaf/spine switch for dense data center fabrics and larger 100G aggregation domains.

Request Quote for XS-DC-64X100-LS-G1 Download Datasheet
  • Doubles the 100G radix of the 32-port platform for larger fabric domains
  • Supports open SONiC operations, telemetry, automation, and fabric routing
  • Provides a high-density 100G leaf/spine option before moving to 400G
  • Designed for redundant power and cooling in production environments

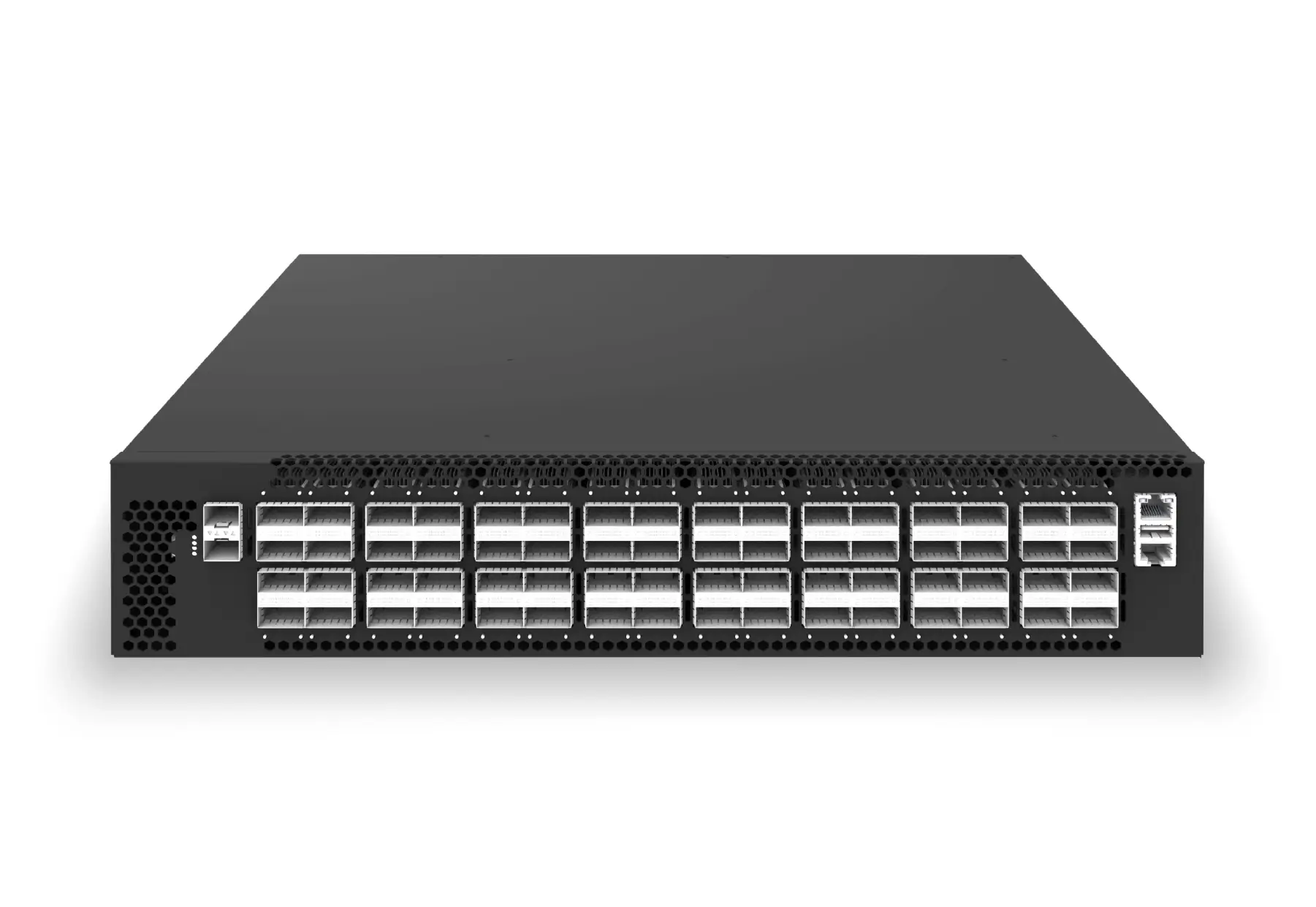

XS-DC-64X100-LS-G1 front panel product image

Specification Overview

Technical specifications.

Use this table as the fast path for platform sizing, port planning, and software compatibility checks.

Category Data Center AI
Rack Units 2U
Ports 64x 100G QSFP28 / 2x 10G SFP+ management or auxiliary ports
Switching Capacity 6.4Tbps
Forwarding Rate 9,520Mpps
OS Version Enterprise SONiC / xSONiC OS profile
Protocols BGP, BGP-EVPN, VXLAN, MLAG, RoCEv2
Management CLI, REST API, gNMI, ZTP, Python, Ansible

Deployment Context

Where this platform fits.

Review positioning, capability notes, and deployment guidance for this xSONiC platform.

Product Positioning

XS-DC-64X100-LS-G1 expands the 100G fabric class with higher same-speed port density. It is suited to data center teams that need more 100G fabric ports per system while keeping a familiar leaf/spine operating model.

Core Capabilities

  • Delivers 64x100G QSFP28 ports for dense 100G leaf, spine, or aggregation roles.
  • Supports BGP-EVPN, VXLAN, MLAG, ECMP, and RoCEv2 design patterns.
  • Provides automation and observability through SONiC-oriented tooling and APIs.
  • Helps consolidate larger 100G racks or aggregation blocks into fewer systems.
  • Maintains a same-speed topology model for simple fabric growth.

Technical Notes

  • Switching capacity: 6.4Tbps.
  • Packet forwarding rate: up to 9,520Mpps.
  • Port profile: 64x100G QSFP28 plus auxiliary 10G ports.
  • Physical profile: high-density fixed switch platform.
  • Power and cooling: hot-swappable redundant power and fan modules.

Typical Deployment Scenarios

Use XS-DC-64X100-LS-G1 when 32-port 100G systems create too many fabric nodes or cross-connects. It is a strong fit for dense private cloud, storage, and enterprise compute fabrics that need more 100G ports without introducing a 400G spine layer yet.

Typical deployment scenarios

  • Dense 100G leaf/spine data center fabrics
  • 100G aggregation for compute, storage, and AI-adjacent workloads
  • VXLAN overlay networks that need higher same-speed radix
  • Scale-out private cloud and service provider environments
